When creating cost estimates for surveillance programs, we frequently need to provide parameters for metrics such as the number of base pairs produced in one sequencing run or read length distribution. To make these parameters more legible, here is a set of statistics based on NAO’s Oxford Nanopore-sequencing of pooled swab samples.
Total and viral read output
Based on 7 sequencing runs, performed between January 2025 and June 2025, the average read output is 2.47 gigabases and 3.1 million reads. Many reads are short, with a median read length across all reads of 166 bp.
Total Base Pairs
Total Reads
Mean Read Length
Median Read Length
Sequencing run
NAO-ONT-20250120
246.44 MB
1.0M
252 bp
118 bp
NAO-ONT-20250127
512.08 MB
1.1M
473 bp
147 bp
NAO-ONT-20250213
264.89 MB
1.2M
217 bp
123 bp
NAO-ONT-20250220
585.21 MB
1.9M
308 bp
134 bp
NAO-ONT-20250313
3.00 GB
1.1M
2821 bp
2859 bp
NAO-ONT-20250327
9.90 GB
2.8M
3497 bp
3571 bp
NAO-ONT-20250606
2.75 GB
12.8M
215 bp
131 bp
Average
2.47 GB
3.1M
790 bp
166 bp

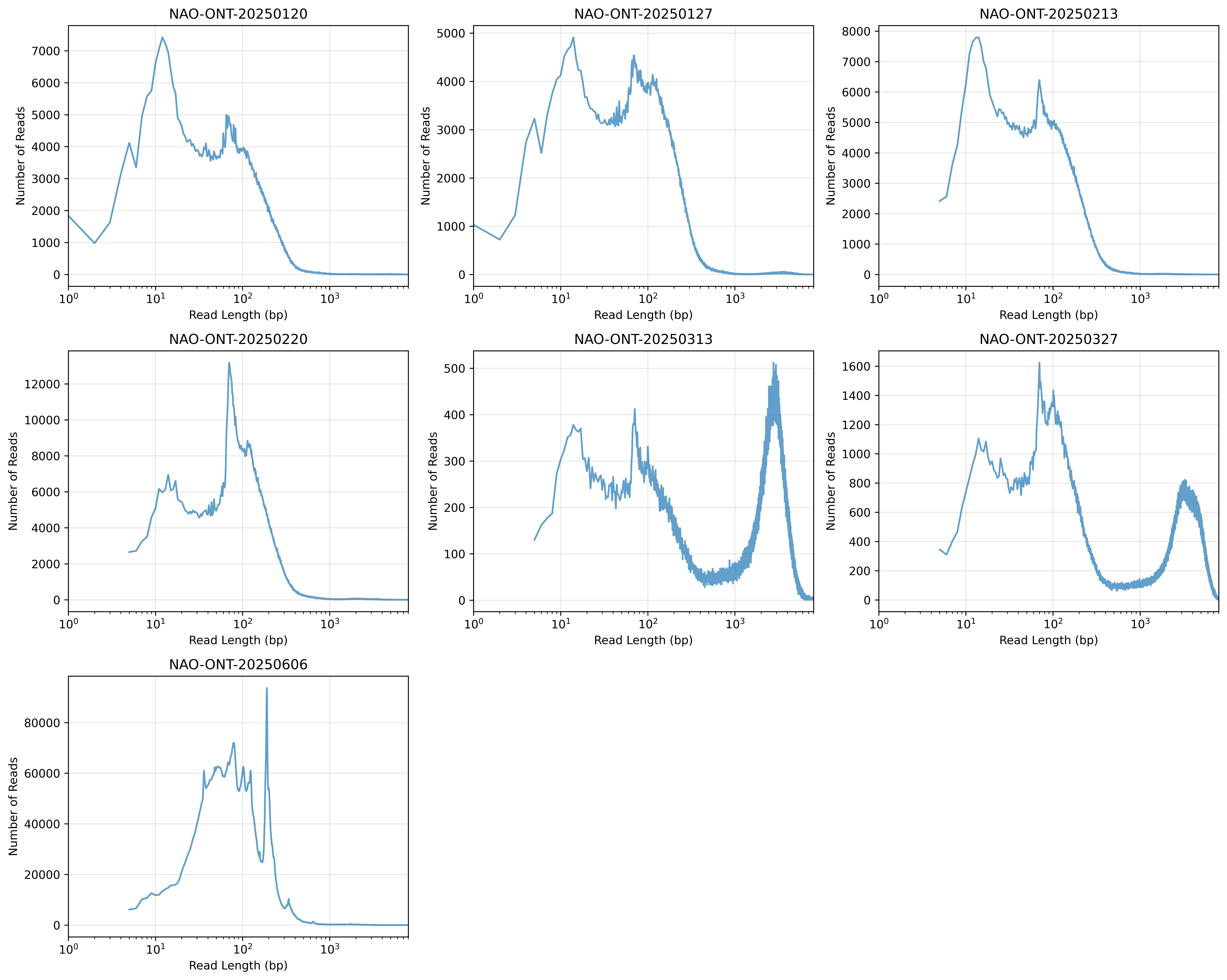

Actual read length distributions are fairly heterogeneous across runs, with many runs showing a bimodal distribution with peaks at 10 bp and 100 bp, and NAO-ONT-20250313 and NAO-ONT-20250327 showing a trimodal distribution, with peaks at 10 bp, 1000 bp, and 2000 bp.

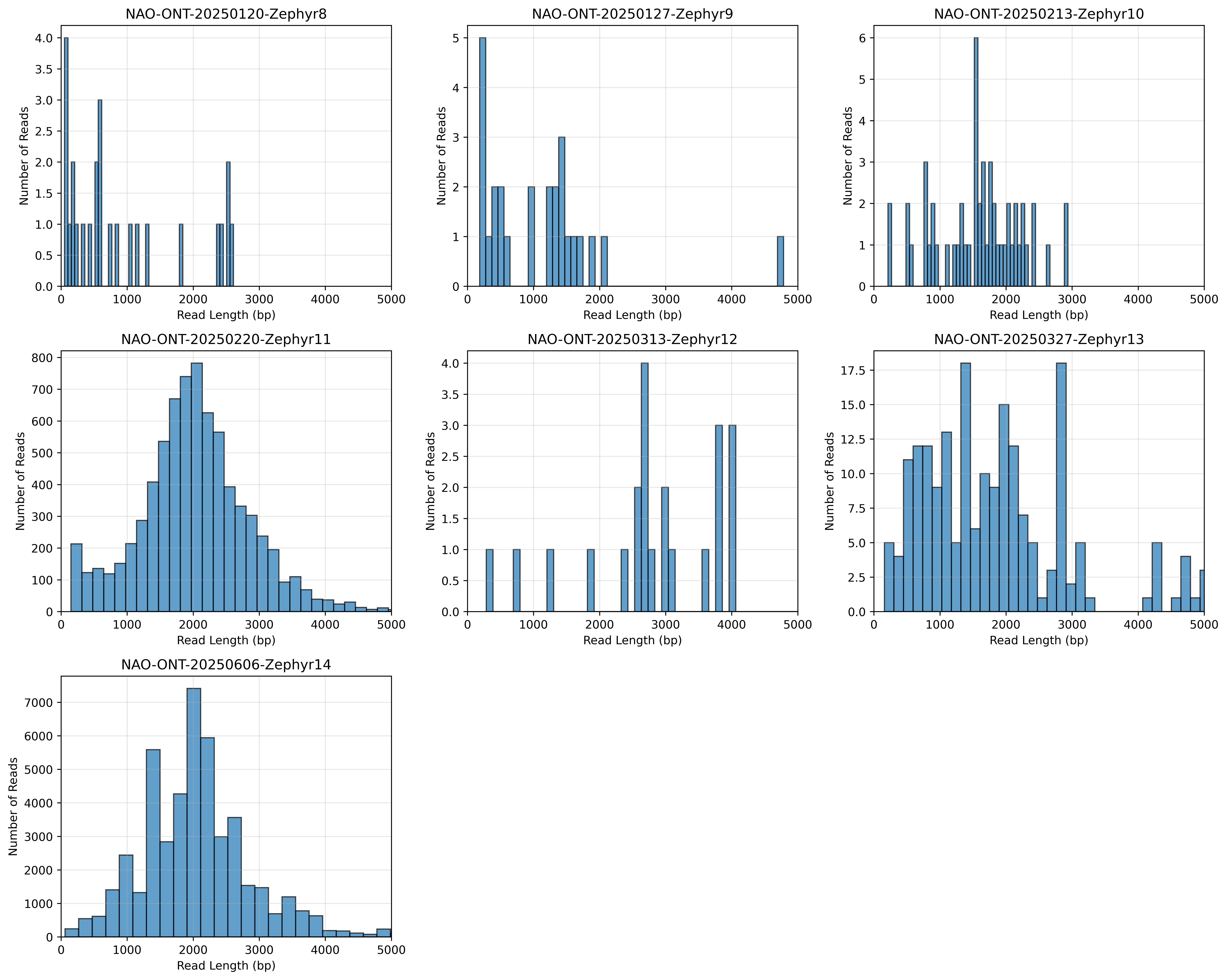

More relevant for virus detection are read length distributions of viral reads. In most runs, viral reads predominantly exceed 1,000 bp in length.
Output across time
Finally, for an up-and-running biosurveillance system we would want to have fast turnaround sequencing. Hence, we’re interested to know how much sequencing output is generated in the first 12 hours of a sequencing run. We have this data available as figures generated by ONT’s MinKNOW software (Google Doc)
Roughly, we see that for most runs the rate at which base pairs are generated in the first 12 hours is 1.6 to 3.3 times higher than after 12 hours.
Run duration (h)
Output at 12h (GB)
Total output (GB)
Share of Time
Share of Data
Rate 0-12h (GB/h)
Rate >12h (GB/h)
Early/Late ratio
Sequencing run
NAO-ONT-20250120
25.0
1.0
1.6
48.0%
62.5%
0.08
0.05
1.6
NAO-ONT-20250127
28.0
1.0
1.7
42.9%
58.8%
0.08
0.04
2.0
NAO-ONT-20250213
40.0
1.3
3.1
30.0%
41.9%
0.11
0.06
1.8
NAO-ONT-20250220
40.0
1.2
2.7
30.0%
44.4%
0.10
0.05
2.0
NAO-ONT-20250313
4.5
4.9
4.9
100.0%
100.0%
1.09
—
—
NAO-ONT-20250327
11.5
8.0
8.0
100.0%
100.0%
0.70
—
—
NAO-ONT-20250606
40.0
4.0
6.8
30.0%
58.8%
0.33
0.1
3.3
